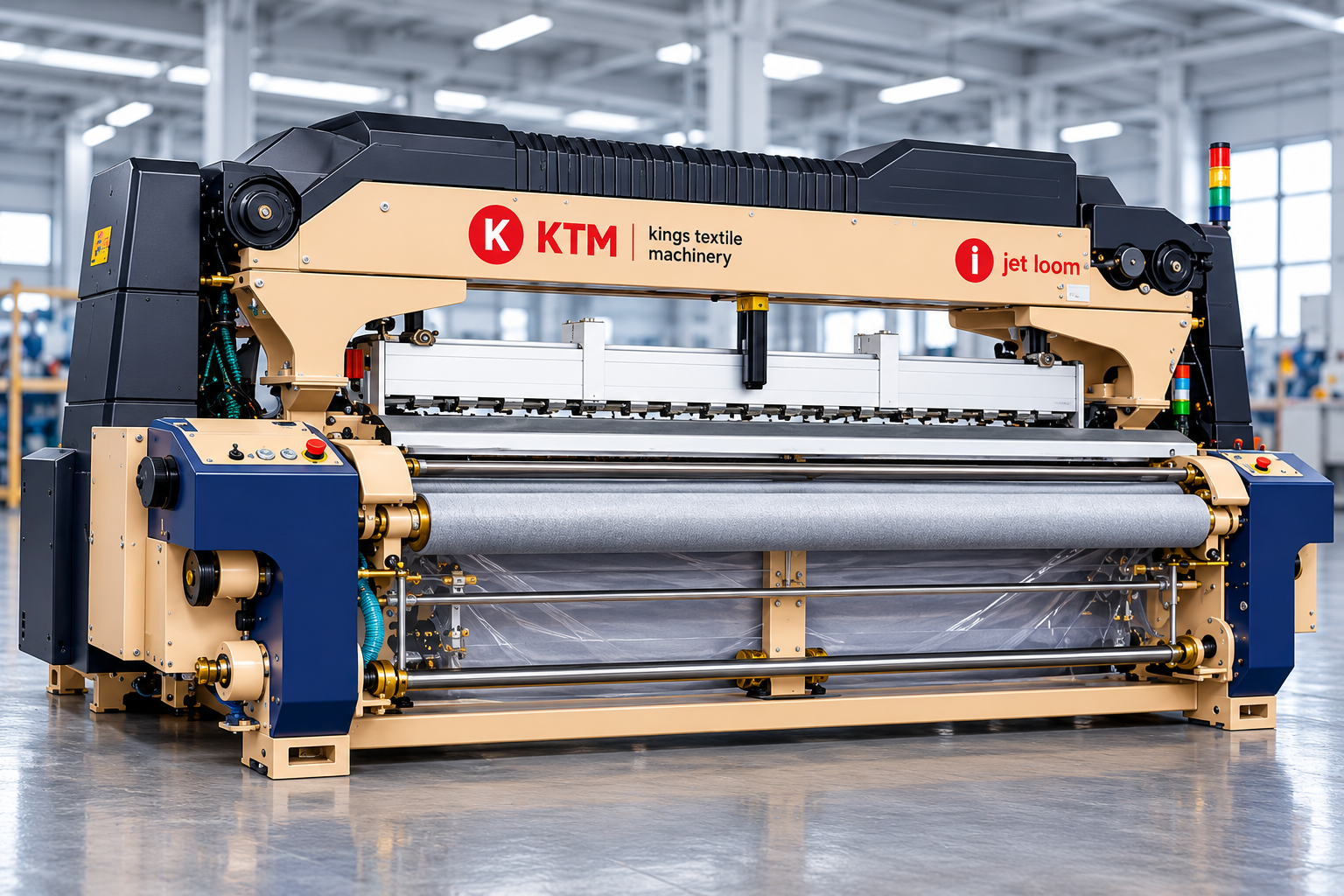

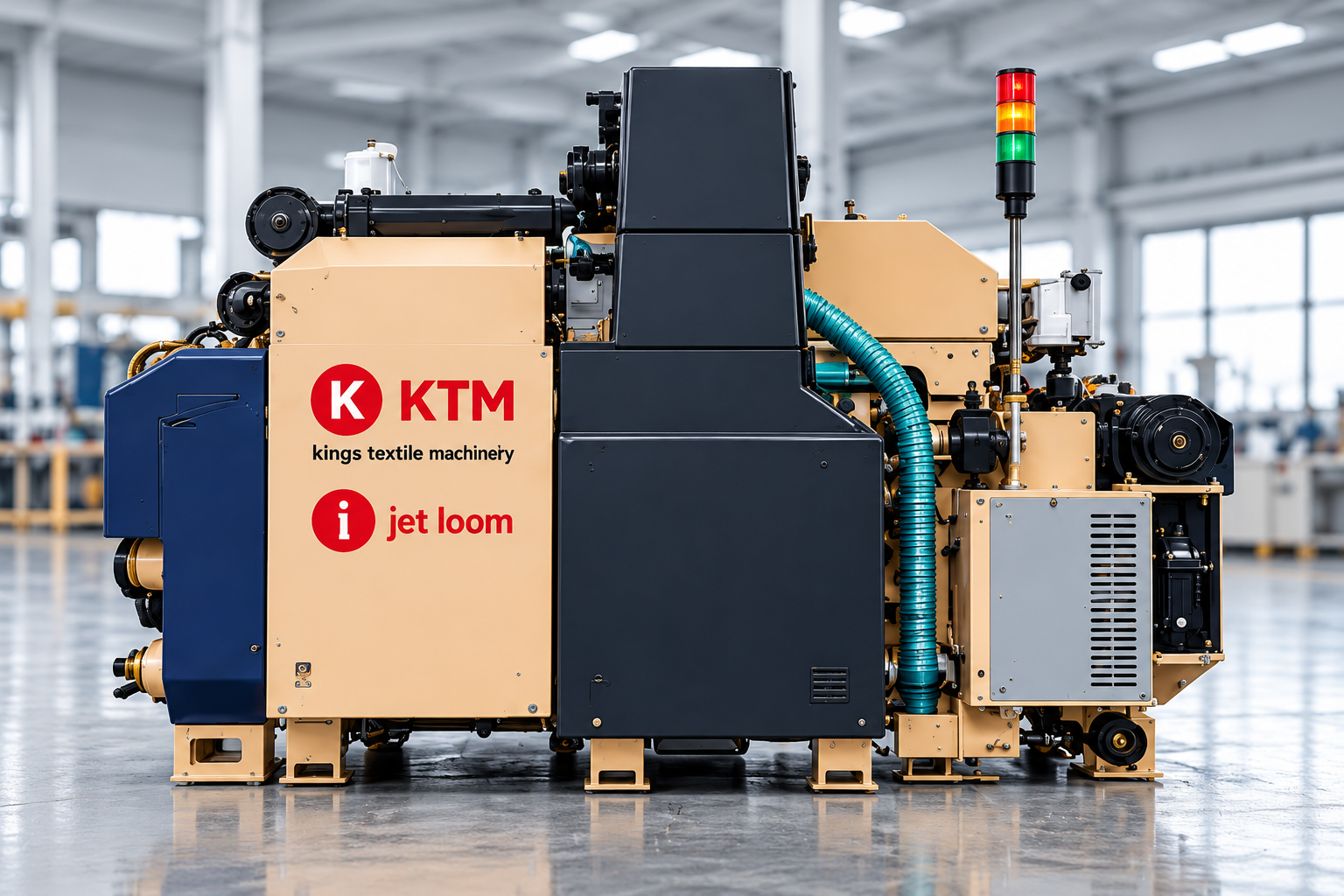

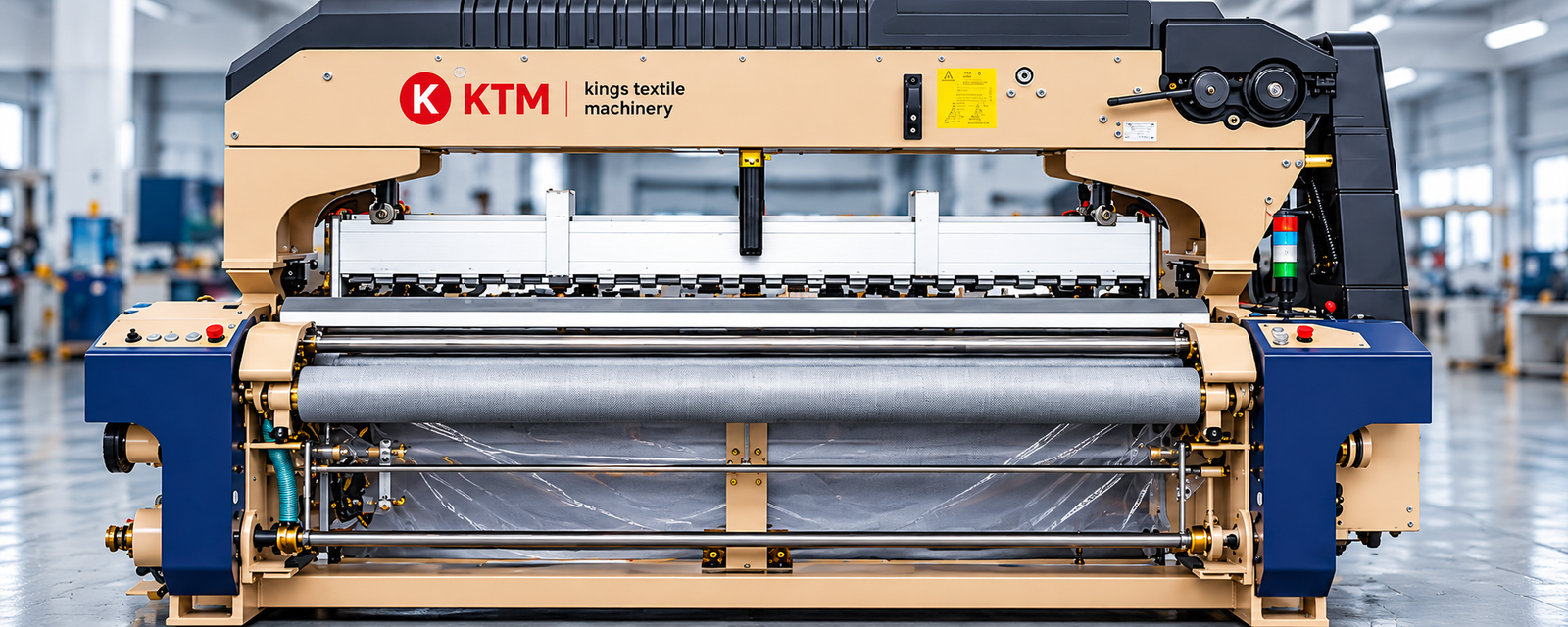

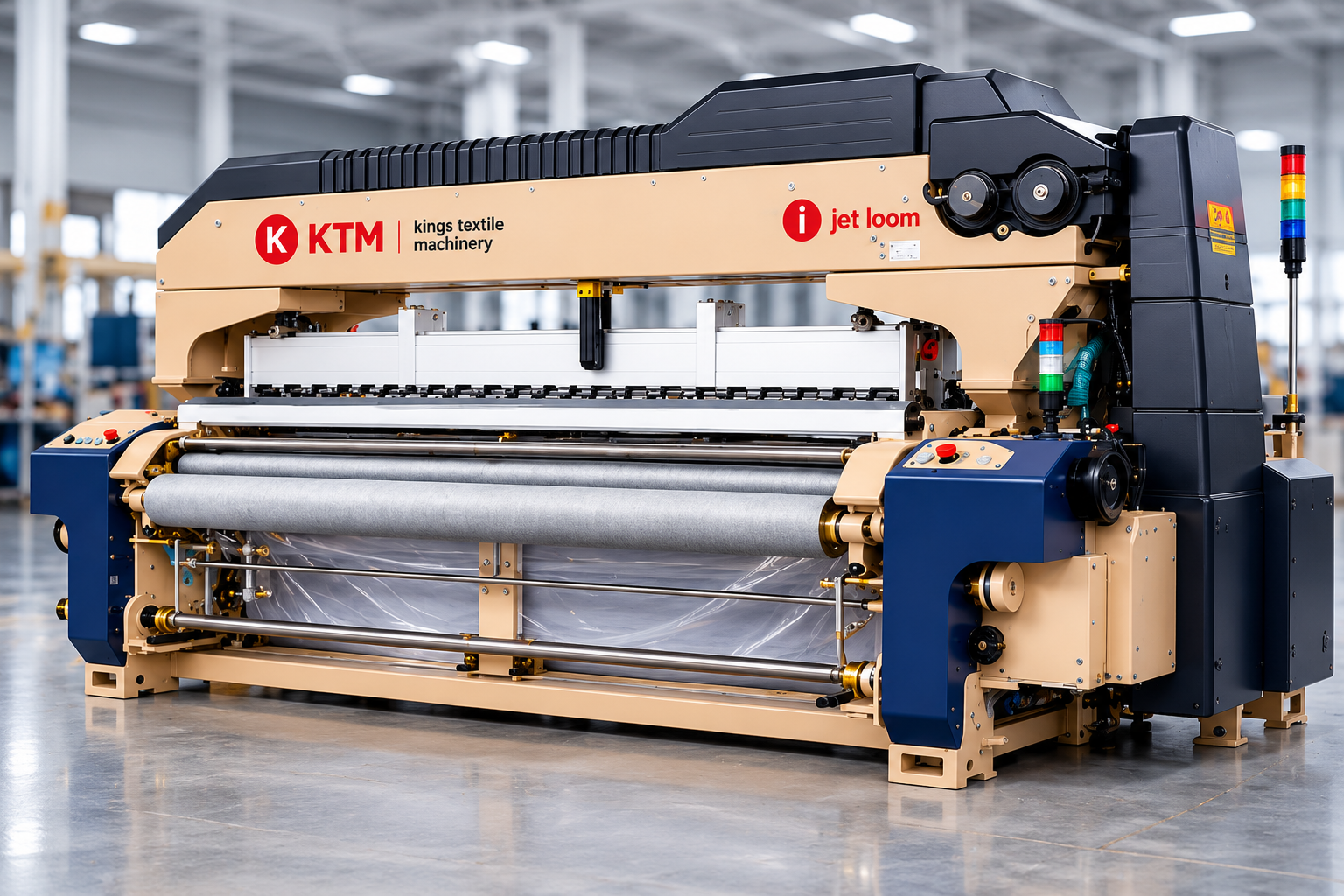

JK508 WATERJET LOOM
Engineered for high-speed and heavy-duty weaving, the JK-508 focuses on an enlarged beam support structure and a stable footing with a 4-shaft deliver superior performance and bending stability. Five core systems – drive, left, shedding, back, and take-up – are fully optimized for stable, high-quality weaving of high-density, high-pick-density fabrics, significantly expanding your product range.
The JK-508 – designed for heavy-duty, high-density weaving. One machine covers both standard and mid-high-density synthetics, making it a profit engine of scale production.

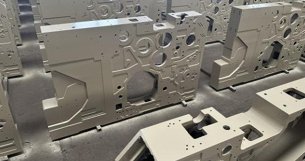

Integrated reinforced tension structure

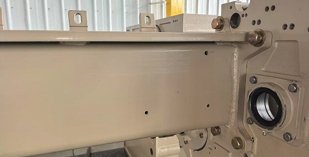

Extra-wide beam supports minimize high-speed vibration

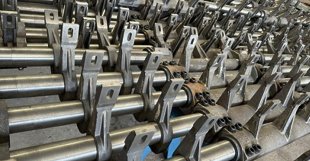

U-type solid shedding shaft (Optical)

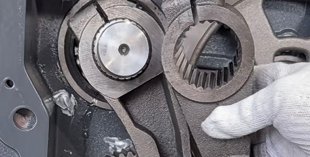

Large Rock Shaft, stronger shaft bearing
Technical Data
Detailed Specifications
Parameter
Value
Model
JK508
Reed Width (cm)
170–380CM
Speed (rpm)
1000rpm–300rpm
Weft Selection
1–4 color / one-four colors
Weft Density
5–150 picks/inch / 5–150picks/inch
Take-up / Let-off
MTU&MO/ELD/ETU&ELD
Feeder
One feeder / Two feeder / 3 feeder / 4 feeder
Water Pump
One pump / Two pump
Motor
Normal motor / motor X(V)
Control System
Panel + ETU/ELD + feeder + motor X
Display
10.1 inch
Shedding
Plain tappet (plain machine)
Shedding-2
Cam shedding
16 shaft
M-dobby / E-dobby
Shedding-4
Jacquard shedding
Beam & Flange
2pcs/set, 32kgs
Frame
AS cam Lever
Cloth Roller
2pcs/set
Reed
2pcs/sets
Wire Heald
15000pcs/set
Cloth Roller Diameter (mm)
Φ500 – normal type
Take-up Roller Diameter
Φ1000mm–1500mm — outside take-up
Overall Dimension (mm)
L63025 × W1700 × H1900 (190cm) / L3500 × W1830 × H1900 (190cm)
* Specifications subject to change without notice. Contact our engineering team for custom configurations.
