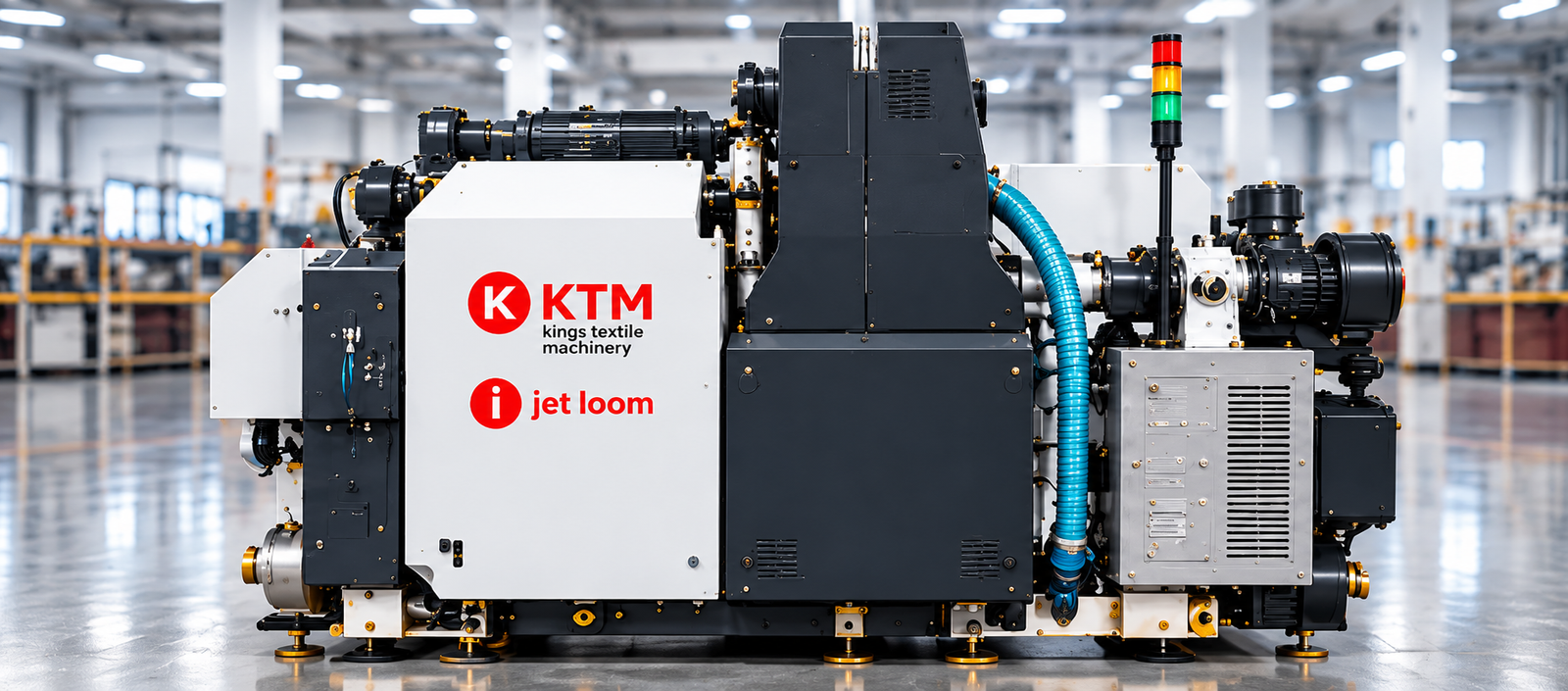

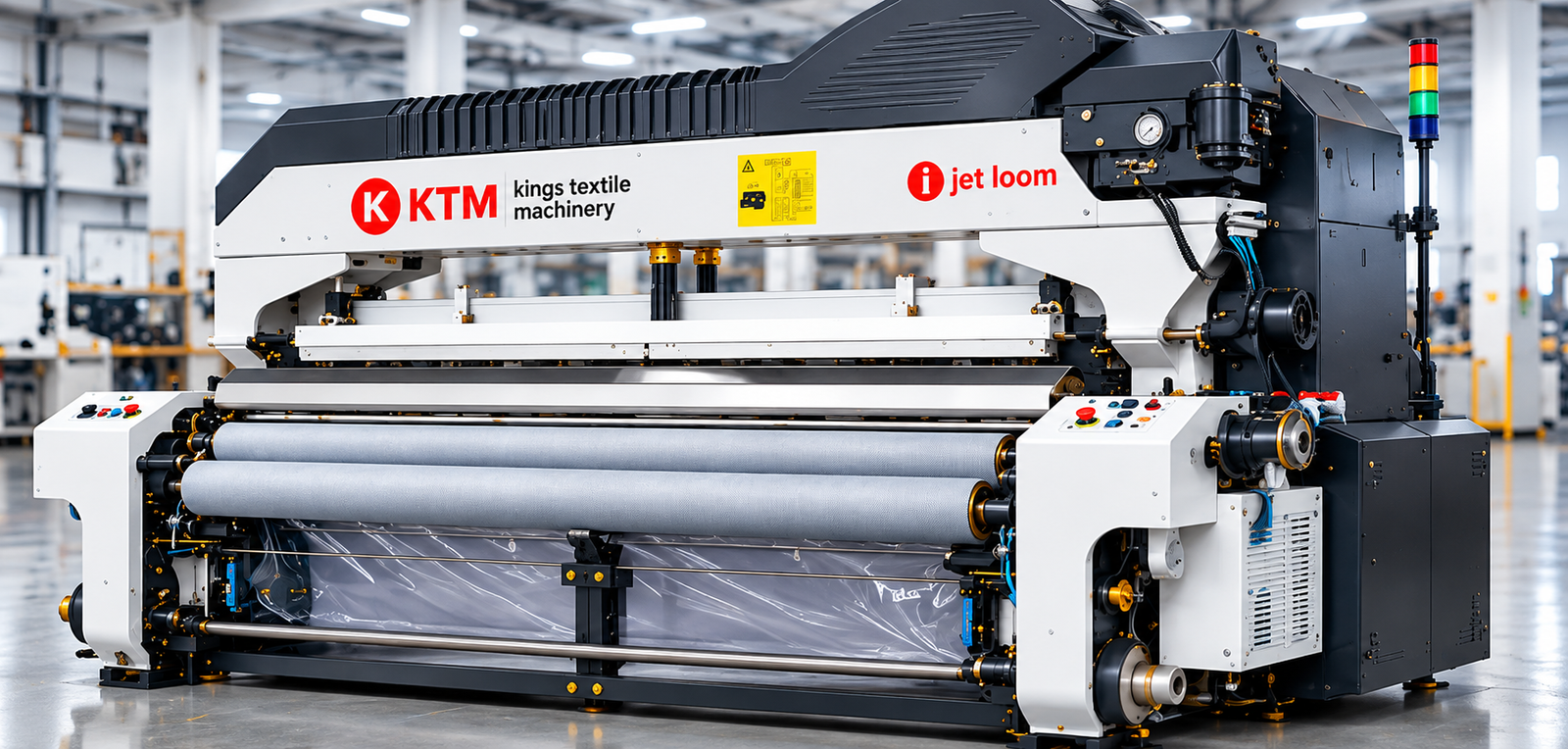

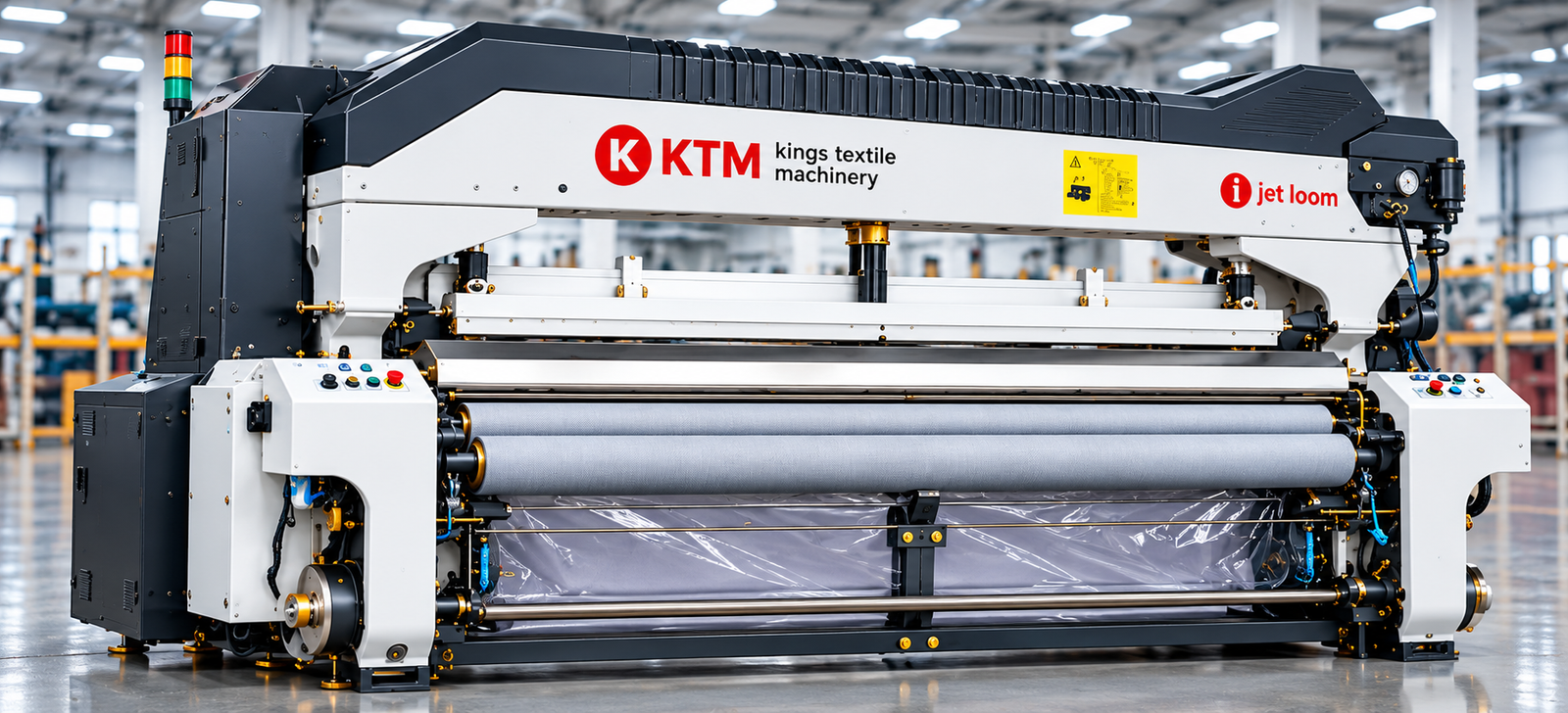

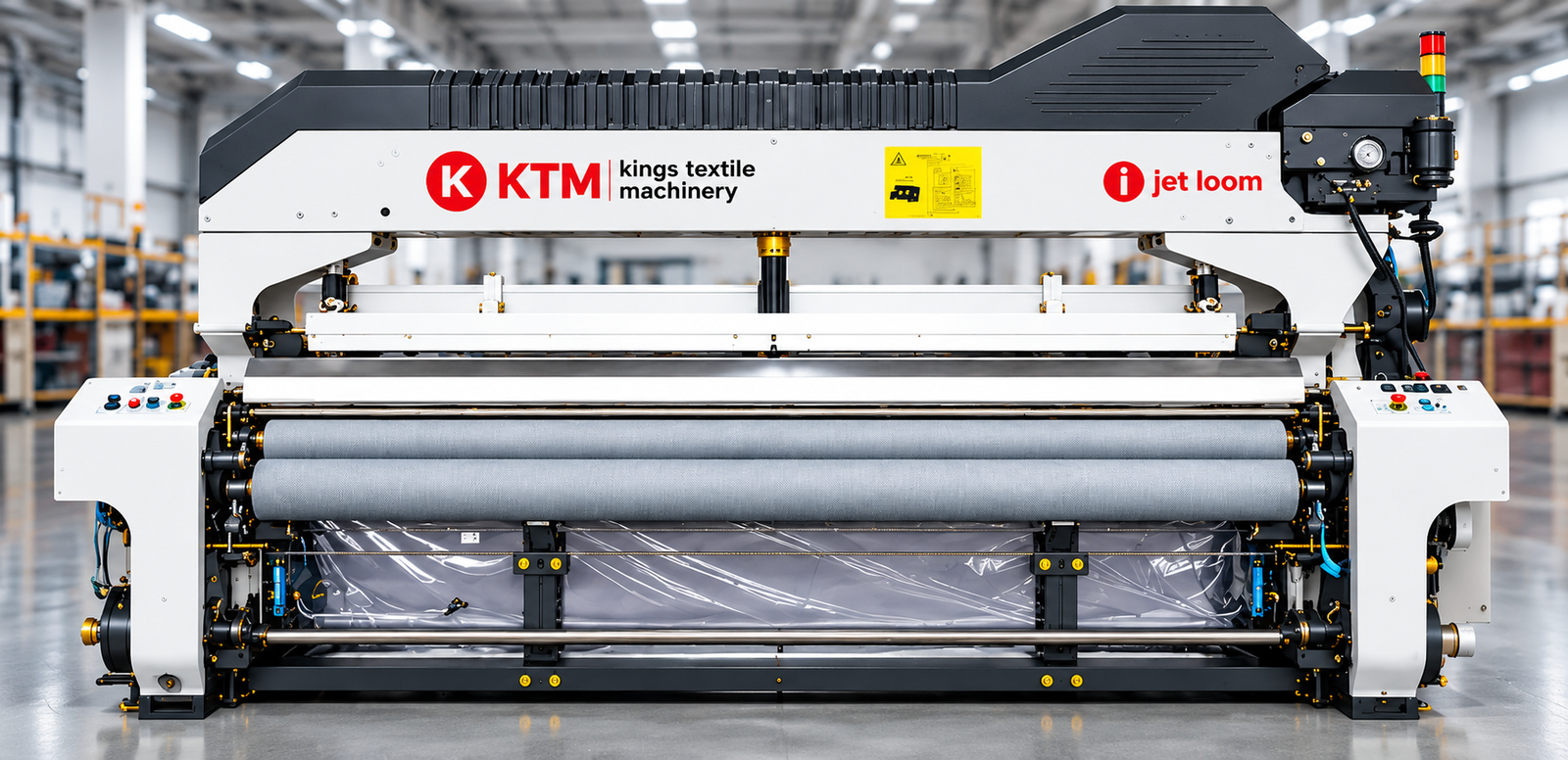

JK822 WATERJET LOOM
The JK-822 is upgraded and rebuilt on the basis of Tsudakoma ZA303, with its compact structure and user-friendly maintenance, it is the ideal choice for manufacturers prioritizing high output and low energy consumption.
Combined with low utility consumption and readily available spare parts, it ensures a rapid ROI, making it the ultimate profit tool for mass-producing standard synthetic fabrics (e.g., polyester, nylon).
Heavy Gear Box
JL Pump
SKOB Check Valve
Taiwan Yuanyi Gear
SD Pump Spring
NACHI/NSK Bearing
Technical Data
Detailed Specifications
Parameter
Value
Model
JK-822
Reed Width (cm)
170–380CM
Speed (rpm)
1000rpm–300rpm
Weft Selection
1–4 color / one-four colors
Weft Density
5–100 picks/inch
Take-up / Let-off
MTU&MO/ETU&ELD
Feeder
One feeder / Two feeder / 3 feeder / 4 feeder
Water Pump
One pump / Two pump
Motor
Normal motor / Motor XD
Control System
Panel + ETU/ELD + feeder + motor X
Display
10.1 inch
Shedding
Plain tappet (plain machine)
Shedding-2
Cam shedding
16 shaft
M-dobby / E-dobby
Shedding-4
Jacquard shedding
Beam & Flange
2pcs/set, 32kgs
Frame
AS cam Lever

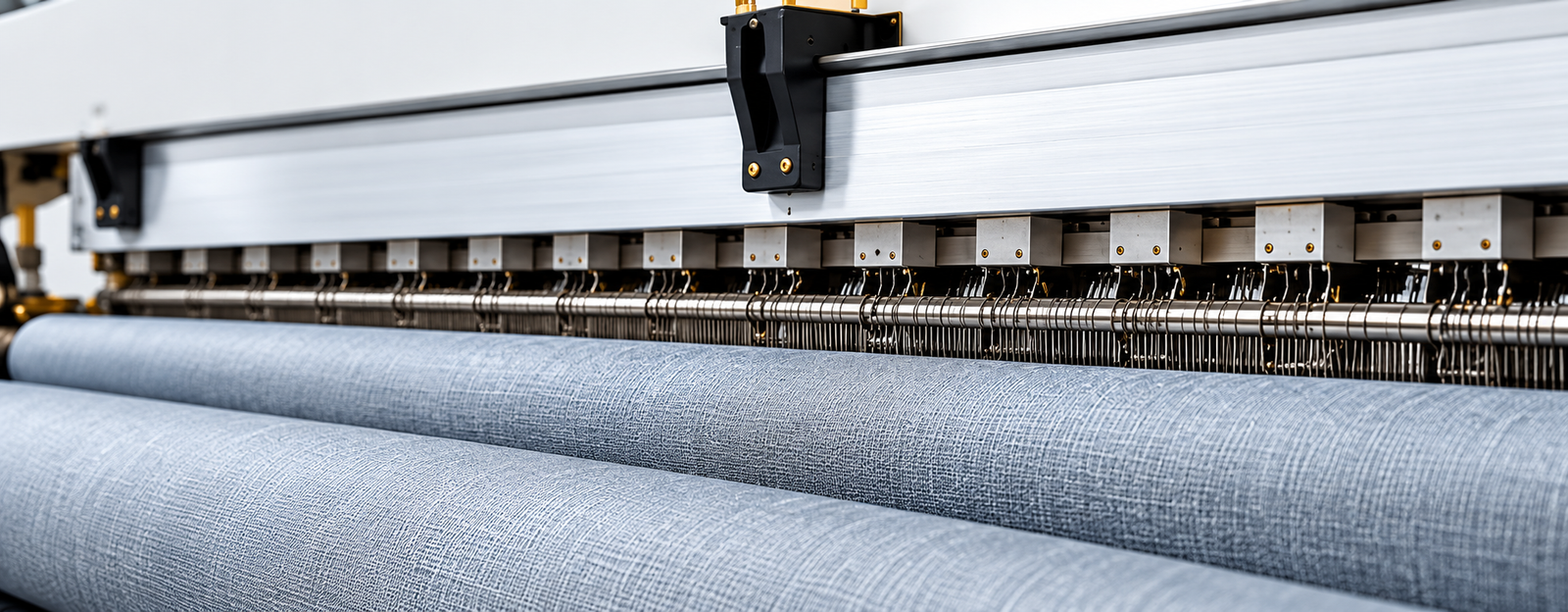

Cloth Roller
2pcs/set
Reed
2pcs/set
Wire Heald
15000pcs/set
Cloth Roller Diameter (mm)
Φ500 – normal type
Take-up Roller Diameter
Φ1000mm–1500mm — outside take-up
Overall Dimension (mm)
L63025 × W1700 × H1900 (190cm) / L3500 × W1830 × H1900 (190cm)
* Specifications subject to change without notice. Contact our engineering team for custom configurations.
